 Click here to return to main page Catalogue Out of stock DJI Naza-M V2 Controller w/GPS Module for Multi-Rotor (Combo)

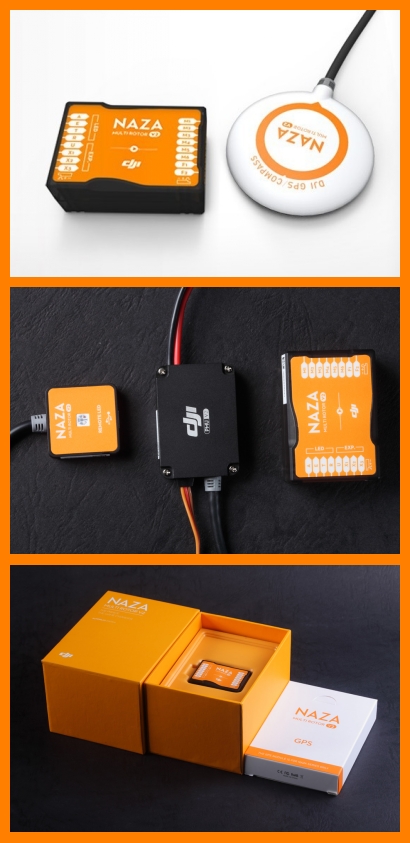

DJI Naza-M V2 Controller w/GPS Module for Multi-Rotor (Combo)
DJI Naza-M V2 Controller w/GPS Module for Multi-Rotor (Combo)
Price: S$409.00 Click to view shopping cart Add this to shopping cart
Features:
  • All-in-one Design
  • Independent PMU with amazing function extension
  • Advanced & Improved Attitude Stabilization Algorithm
  • Nine Types of Multi-rotors Supported
  • Multiple Flight Control Modes/Intelligent Switching
  • GPS Module Available/Accurate Position Hold
  • Intelligent Orientation Control
  • Enhanced Failsafe Mode
  • Two Levels of Low Voltage Protections
  • Motor Arm and Motor Dis-arm
  • PPM, S-BUS & Ordinary Receiver Supported
  • Independent LED Module
  • Built-in Gimbal Stabilization Function
  • Multi-rotor One-power Output Fail Protection
  • Remote Gain Adjustment
  • New Assistant Software & Firmware Online Update
Specifications:
  • Basic Performance:
  • Supported Multi-rotor: Quad-rotor I4, X4; Hex-rotor I6, X6, IY6, Y6; Octo-rotor I8，V8，X8
  • Power Consumption:MAX: 3.15W(0.25A@12.6V); Normal:1.638W(0.13A@12.6V)
  • Supported ESC output:400Hz refresh frequency
  • Operating Temperature: -10°C ~ 50°C
  • Recommended Transmitter: PCM or 2.4GHz with minimum 4 channels
  • Assistant Software System Requirement:Windows XP sp3 / Windows 7 / Windows 8
  • Working Voltage Range: MC:4.8V~5.5V ; VU Input: 7.4V ~ 26.0 V ;(recommend 2S ~ 6S LiPo); Output(V-SEN port red wire): 3A@5V;(burst current:7.5A)
  • **Flight Performance:
  • Hovering Accuracy(GPS Mode):Vertical:±0.8m Horizontal:±2.5m
  • Max Yaw Angular Velocity:200°/s
  • Max Tilt Angle:35°
  • Ascent / Descent:6m/s，4.5m/s
  • ***Hardware:
  • MC:27g ; PMU:28g ; GPS:27g ; LED:13g
  • Dimensions:MC: 45.5mm x 32.5mm x 18.5mm
  • PMU: 39.5mm x 27.5mm x 10.0mm
  • GPS & Compass 46mm(diameter)x10mm
  • LED: 25mm x 25mm x 7.0mm
  • Built-In Functions:
  • Multiple Autopilot Control Mode
  • Enhanced Fail-safe
  • Low Voltage Protection
  • S-Bus Receiver Support
  • PPM Receiver Support
  • Independent PMU Module
  • 2-axle Gimbal Support
Misc Information:
